Specifications

Standard configuration

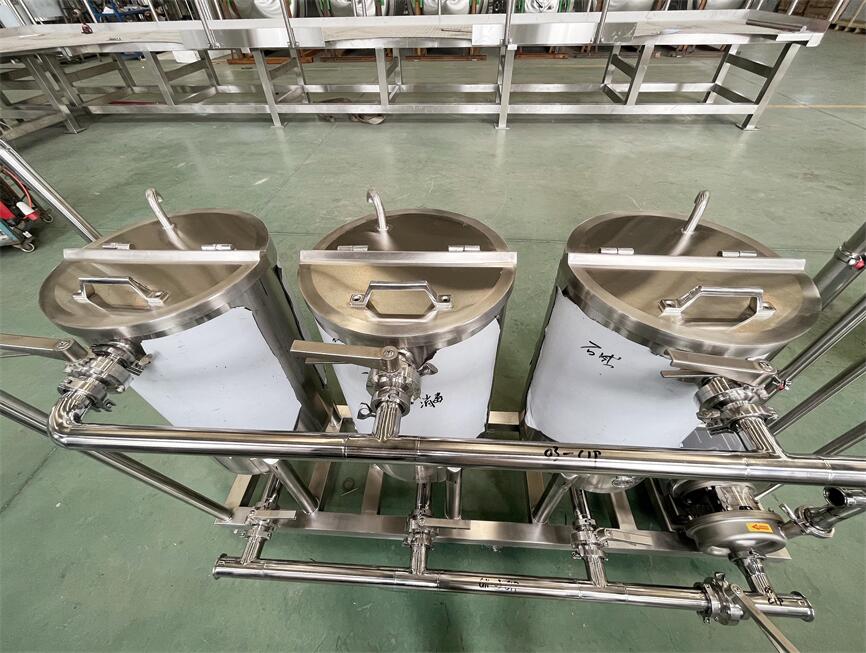

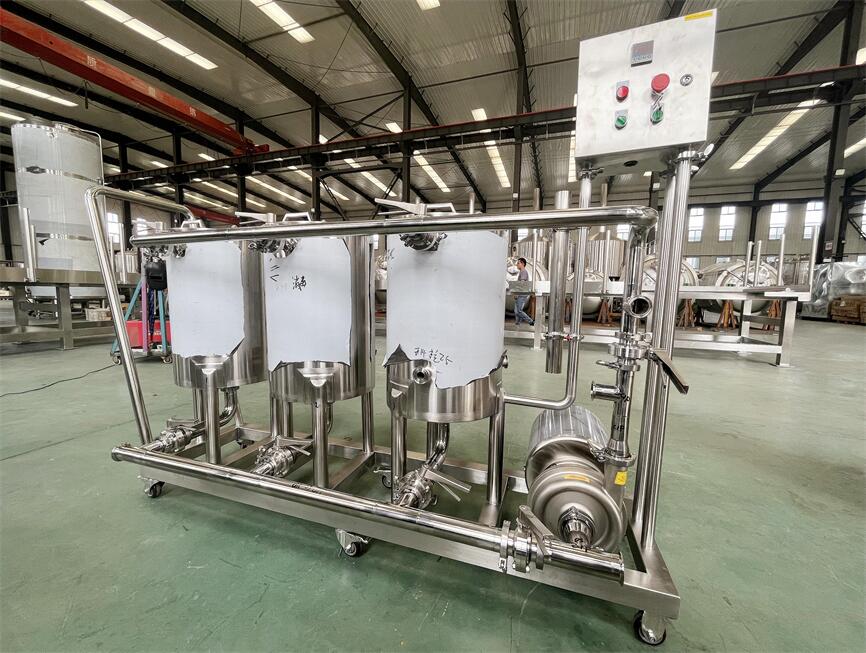

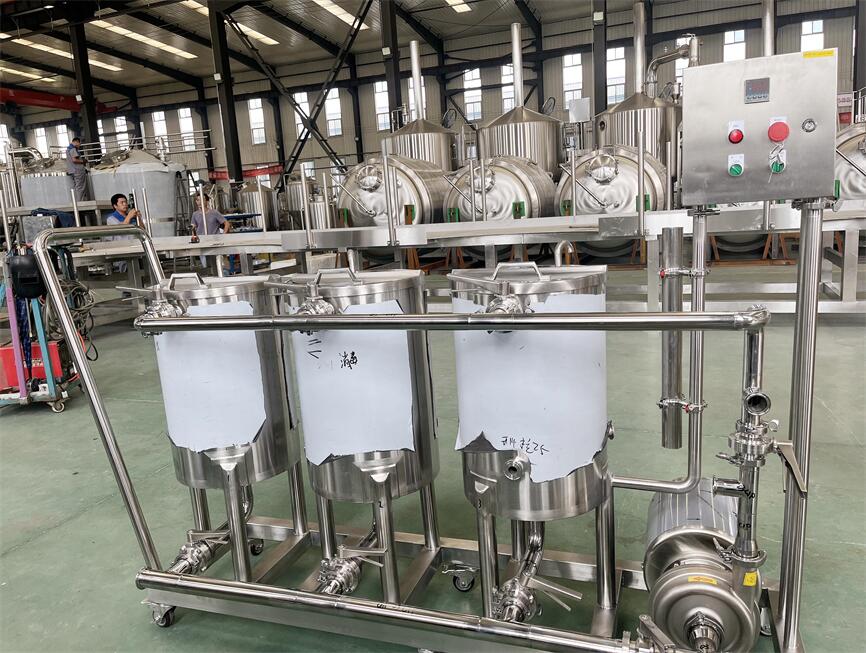

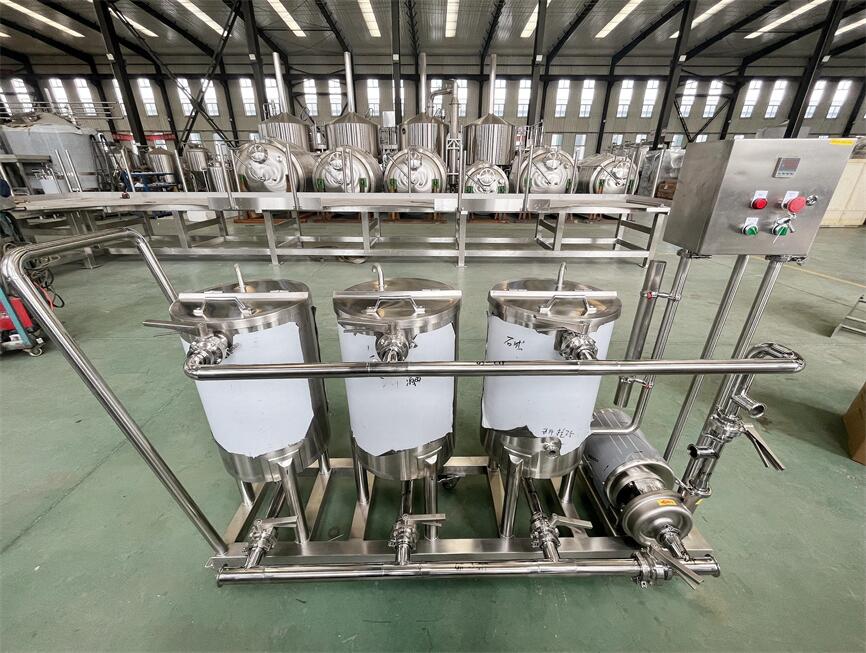

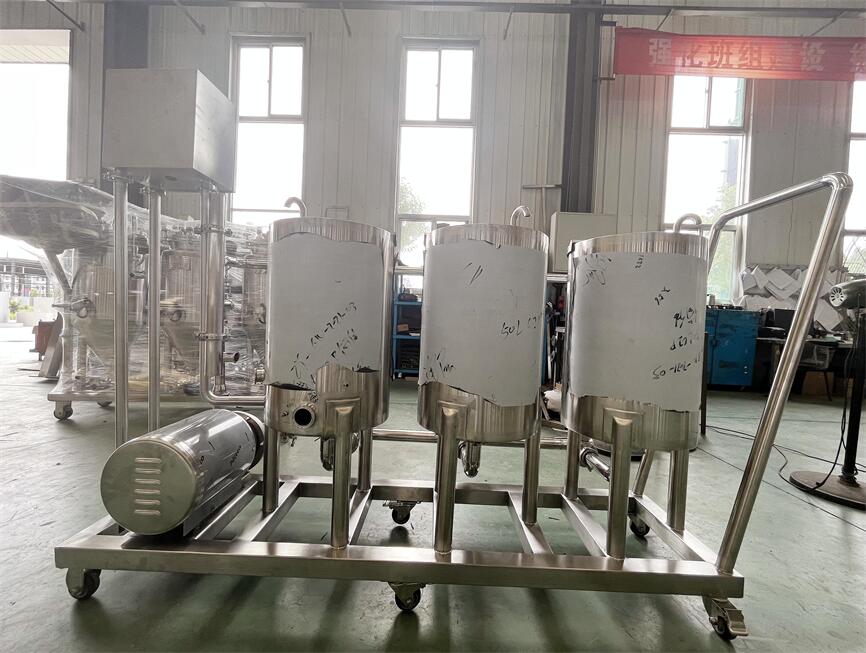

Tanks and Cart:

• Caustic tanks，acid tanks and hot water tanks with bottom outlets

• made out of stainless steel framing to accommodate the three tanks, the heating tube, and the control panel. Cart has four wash down casters for mobility.

• In-line heater for caustic and hot water

• Separate sanitizer line to prevent cross contamination with the caustic

• Directional valves for recirculating and transferring to the tanks to be cleaned

• CIP output connection via 1.5” TCCIP return connection via 1.5” tri clamp

Heating System:

• The heating pipe is located in the caustic tank and hot water tank

Control Panel :

• Temperature controller (for controlling the recirculation temperature)

• In tube liquid present sensor / temperature probe assembly (prevents element from running dry)

Pump:

• Variable speed CIP pumps with wash down motor mounted on the frame

• Standard 50, 100, 150, 200 and 300L caustic tanks. Custom sizes available for any size brew house - just ask!


• Innovative in-line heater maintains caustic temp to set temperature

• A separate sanitizer line prevents cross-contamination between the sanitizer and caustic fluids

• Directional valves for recirculating and transferring to the brew tank

• 1.5" tri-clamp connections standard on all sizes

• Heating element is GFCI protected for the safety of you, the brewery, as well as the equipment

• Digital temperature controller

• Variable speed pump

• Inline liquid sensor & temperature probe assembly prevents dry-firing of heating elements

• CE/UL/cUL listed assembly

Advantage

• Minimizes Mistakes: Automating cleaning reduces the chance of human error that can contribute to an unsafe product.

• Keeps Employees Safe: Reduces chemical exposure by containing cleaning solutions within the system.

• More Production Time: As less production time is lost to cleaning, more time is spent making product.

• Product Quality: Reliable and repeatable cleaning means sustainable product quality and consistency. Less contamination means fewer product recalls and higher brand confidence.

• Utility Savings: Water and energy usage is reduced through repeatable cycle control.
