Sistema de fermentación

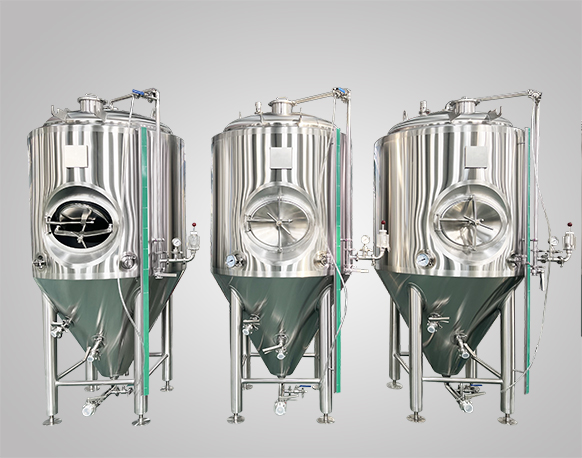

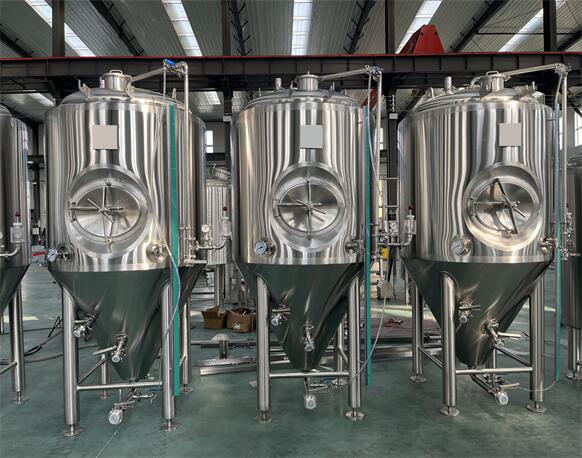

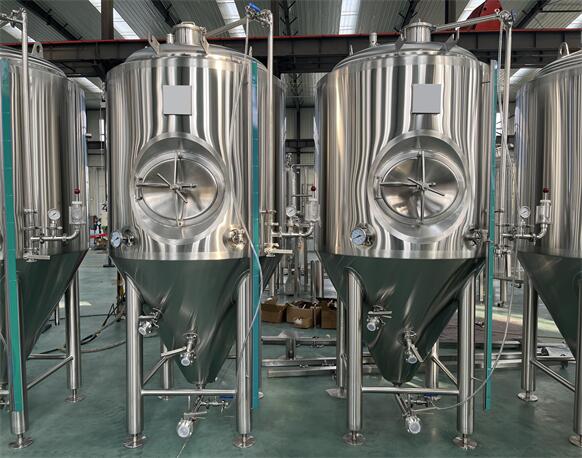

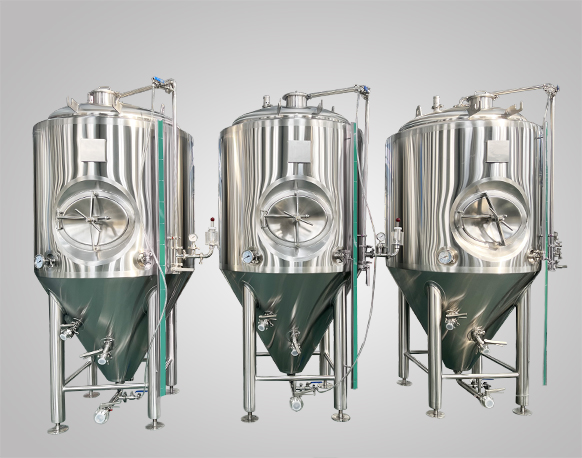

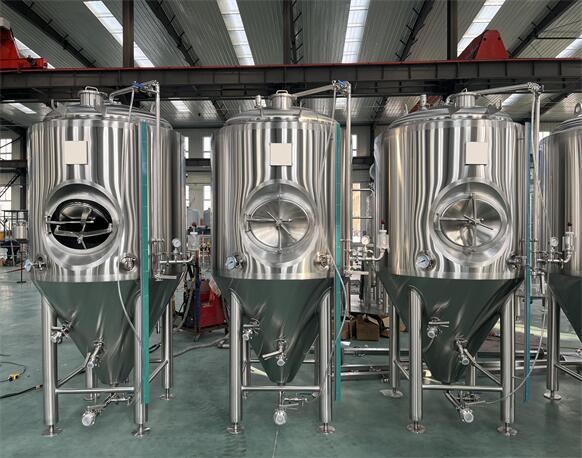

1000L beer fermenter is manufactured by ZR BREW,we can customize beer fermentation tanks of different specifications according to customer needs. All fermentation tanks are made of certified 304 or 316 stainless steel materials and components, 100% TIG welding and hygienic polishing,to ensure food hygiene level, and strictly undergo strict production process Quality control, inspectionp; and pressure testing, form detailed inspection records, and send out with the goods. ZR BREW guarantees free delivery of all valves and fittings.
Product Paramenters
| Interior | Jacket | |
| Material | SUS304 | SUS304 |
| Working pressure (Mpa) | 0.2 （30psi） | 0.2（30psi） |
| Design pressure (Mpa) | 0.3 （45psi） | 0.4 （60psi） |
| Effective volume | 15BBL | |
| Total volume | 19BBL | |
| Tank Size (mm) | Ø1560*2800 | |
| Cooling meth | Glycol water cooling | |
| Insulation material | Polyurethane | |
| Insulation thickness（mm） | 80 | |
| Inter tank thickness （mm） | 3.0 | |
| Outer tank thickness（mm） | 2.0 | |
| Cone angle | 60° | |
| Note:1Barrel (BBL) =117 Liter 1Hl=100 Liter 1Gallon=3.7854 Liter 145psi=1MPa | ||
Details Images
 |  |  |
| Mechanical PRV | Sample Valve | Pressure manhole |
 |  |  |
| Titanium Rods | Temperature Sensor | Solenoid valve |
 |  |  |
| Racking Arm | Ladder hook | Hop adding port |
 |  |  |
| Welding Detail | Safety valve | Adjusting bolt |
1000L beer fermenter standard configuration
Dished and conical head are available
Pressure side manhole door
TC connected CIP arm with 360° coverage spraying ball
Sanitary sample valve
Safety valve on top
Mechanical safe valve PVRV 2 bar on CIP arm
Diaphragm pressure gauge on CIP arm
Horizontal rotating racking arm and port on cone with butterfly valve
Tri clamp discharge arm with butterfly valve
Dry hopping port 6-8'' TC with solid end cap
Thermowell for high accuracy temperature sensor
Top hooks for hanging ladders
4pcs completely SUS304 heavy duty legs with leveling pad and legs support
Complete valves, fittings and all parts
100% TIG welding with pure argon gas shield
Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional)
Exterior Finish: Oil brushed finish（2B, 8K Mirror finish optional)
Interior full polished to 0.2~0.4 μm without dead corner
Glycol Jacket: Dimpled plate on cone and side
1000L beer fermenter optional configuration
Separate blow-off pipe & CIP
Carbonation stone for CO2
Display temperature gauge in front
Liquid level display on the sidewall
Advantage of configuration
For easy yeast excretion, designed with a 60° cone angle
Polishing/drawing/mirror finish/pickling passivation optional
Shadowless manholes or top manholes depending on the customer's fermentation process and brewing type.
The headspace is larger, and the covering headspace volume is calculated separately and additionally.
Jacket test by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours,Tank leakage test by water and gas, 4bar/60psi for 1hour, 2.5bar/37.5psi for 48 hours,all data will be recorded to facilitate strict quality control and management
Easy to operate with dedicated ladder
For easy lifting, it is equipped with lifting lugs.
For flexible conveying of beer, it is equipped with a swivel rocker
To ensure tank alignment and leveling, it is equipped with adjustment bolts
Specifications and models
| Sepcification | Total volume(L) | Cooling ares(m2) | Diameter(mm) | Height |
| ZR-FV-100 | 125 | 0.86 | 650 | 1500 |
| ZR-FV-200 | 250 | 1.3 | 850 | 1600 |
| ZR-FV-300 | 375 | 1.9 | 860 | 2000 |
| ZR-FV-400 | 500 | 2.1 | 960 | 2000 |
| ZR-FV-500 | 625 | 2.2 | 960 | 2200 |
| ZR-FV-1000 | 1250 | 3.4 | 1260 | 2600 |
| ZR-FV-1500 | 1875 | 4.5 | 1460 | 2850 |
| ZR-FV-2000 | 2500 | 5.4 | 1600 | 3100 |
| ZR-FV-2500 | 3125 | 6.0 | 1800 | 3400 |
| ZR-FV-3000 | 3750 | 6.7 | 1800 | 3600 |
| ZR-FV-4000 | 5000 | 7.6 | 1900 | 4000 |
| ZR-FV-5000 | 6250 | 8.5 | 2200 | 3800 |
Pre-sale service :
| 1. Free turnkey beer brewing/filling/packaging solutions. |
| 2. The technical team with 13 years of experience in the beer brewing equipment industry, one-to-one service, provides different brewing process according to your requirements. |
| 3. According to your site, carry out overall project planning and provide two-dimensional and three-dimensional layout drawings |
Aft-sale service :
| 1. Perfect packaging and transportation, all the tanks are wrapped by three layers of PE protective film, the nozzles are blocked by dust caps, the spare parts are sealed in wooden b oxes, the whole loading process is recorded by photos, and accompanied by a checklist, sent to you together. |
| 2. Complete installation and commissioning services, providing detailed installation instructions in English or French, online video-guided installation and offline door-to-door installation. You can choose between two installation and commissioning modes. We are also establishing technical service teams around the world, so that you can look back worry-free. |
| 3. Lifetime warranty and technical consultation. |
Why choose ZR BREW
Shandong Zeren Machinery Equipment Co., Ltd. referred to as ZR BREW.ZR BREW is an equipment manufacturer
focusing on the biological fermentation industry, mainly engaged in beer brewing equipment, providing high-end
comprehensive services of product design, production, processing, installation, technical process training. ZR BREW's
products have been exported to more than 40 countries and regions in the world.
ZR BREW Company is located in Jinan City, and the factory is located in Dezhou City, covering an area of 10,000
square meters. The company has 52 employees, including 6 senior technicians and 8 intermediate technicians, with
more than 20 undergraduates. Project leaders and technical engineers have more than 13 years of work experience
in the beer industry.
Our Advantage
Our Team
Certifications
Cómo controlar la temperatura del fermentador
El PLC o visualizador digital está conectado al sensor de temperatura PT100 instalado en el tanque a través de la línea de señal para controlar la temperatura.
¿Cómo usar tu fermentadora?
ZR BREW tiene instrucciones en papel en inglés, y le enseñaremos hasta que lo haga bien.
¿Cuál es su plazo de pago?
1. Transferencia T/T, pago por adelantado del 40% para iniciar la producción, después de pagar el pago del saldo del 60% para el envío. 2. Paypal o garantía comercial está disponible.
¿Cuál es el tiempo de entrega de su fermentador?
Por lo general, el tiempo de entrega para el tanque del fermentador es de 30 días hábiles, mientras que el tiempo de entrega para el proyecto de cervecería completo es de 40 días hábiles, cronometrado a partir del dibujo final confirmado
¿Ofrecen servicio postventa?
Sí, ZR BREW podría proporcionar un servicio posventa. Tenemos muchos ingenieros profesionales, pueden ir a su lugar y enseñarle a su persona a instalar y preparar cerveza.
